VNG CorporationTo initialize a File Storage on the File Storage system, you can follow these steps:
Step 1: Go to https://efs.console.vngcloud.vn/overview

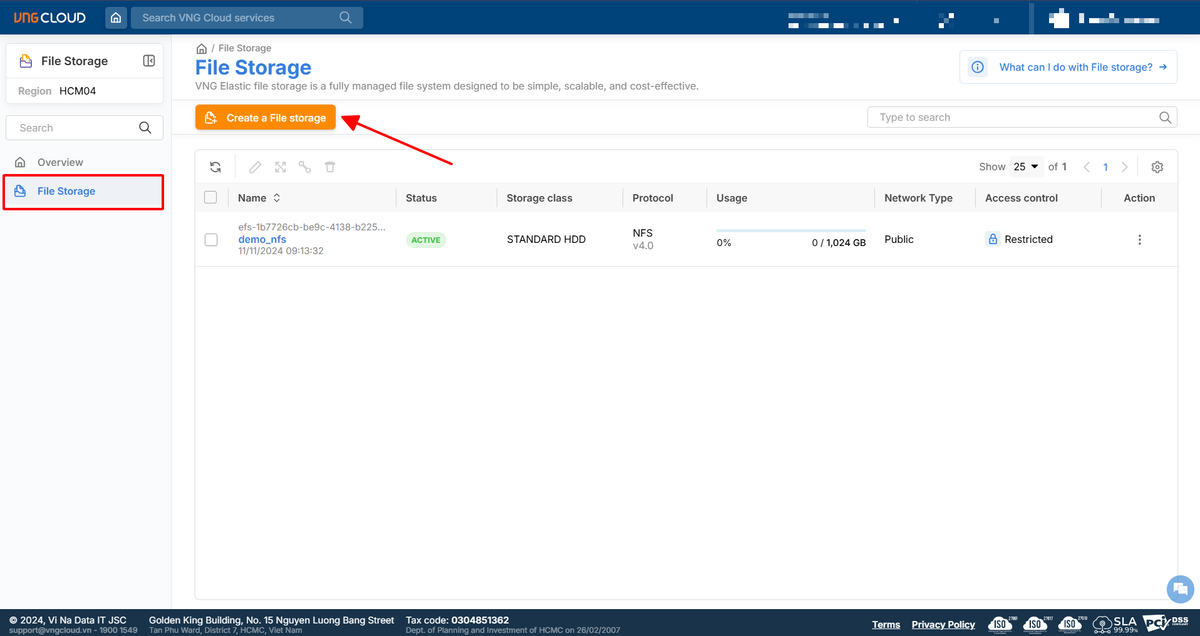

Step 2: Select File Storage then select Create a File storage.
Step 3: At the File Storage initialization screen, you need to enter/select:
File Storage name: the descriptive name of the storage file. The file name must be between 5 and 50 characters long and can include the characters a-z, AZ, 0-9, '-', '_'
Description : enter a description for the storage file.
File storage type: select the type of drive you want to use. Currently we only provide Standard HDD drive type.
Protocol: select the protocol you want. We currently support:
NFS : v4.0, 4.1
SMB : v2.0+ (coming soon)
Tag: you can add tags to mark file storage as needed.
File Storage Max quota: in the file storage initialization step, you need to set a maximum quota limit for that file storage. This quota means the limit of storage capacity that the file storage can use, helping to manage resources effectively. The minimum quota you need to choose is 1 TB and the maximum quota we provide is 50 TB. If you need to use more than 50 TB for a file storage, please contact us.
Network type : select the network type you want. Currently, we support:
Public : all access is public, you can use this storage file for VMs, K8S on-premise, on VNG Cloud or resources from other sources.
Private: coming soon.
Permission: configure IP-based access permissions
No one: No IP is allowed to access.
All: Allow all IPs to have RO (Read-Only) or RW (Read-Write) access.
Restricted: Only allow specific IPs to access with RO or RW permissions.
For example, in the picture, I only allow IP 192.168.1.100 to have RO rights and IP 192.168.1.101 to have RW rights
Step 5: Select Create File Storage.
After the system has finished initializing your File Storage, to get the mount guide, please select Action then select Mount Guide
