Working with Log search
Last updated
Last updated
Address
VNG CorporationLog Search is where you search and analyze your data. With Log search, we provide you with features including:
Search, filter, visualize, and analyze logs from all your services, applications, and systems. (Search logs)
Export logs data. (Export logs)
To perform log search and analysis, follow the instructions below:
Log in to https://hcm-3.console.vngcloud.vn/vmonitor . Select Log.
Select Log search .

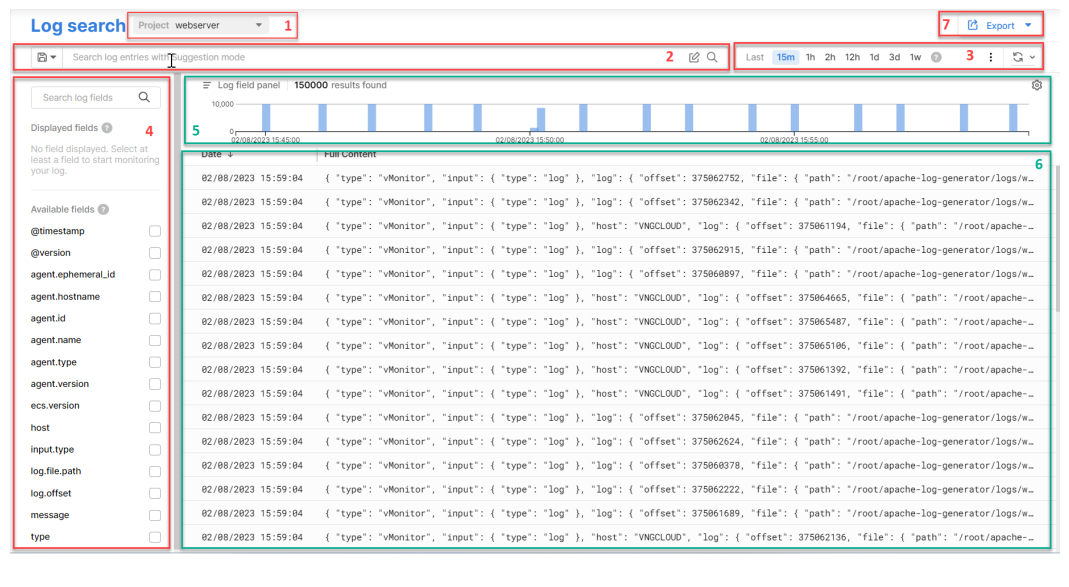

Select which Log project you need to view and analyze logs. The location to select the project log is displayed as shown below:
In there:
Region
Describe
first
Select the Log project for which you want to search and analyze logs.
Select or search for the Log project for which you want to view detailed logs.
2
Logs search area, details on how to create commands can be found at Search logs .
3
Select area to filter logs by time
Choose the condition to filter logs by time in 1 of 3 ways: Quick time, Relative time, Absolute time .
Refresh logs icon: you can use to refresh the list of logs displayed according to selected conditions.
In addition to selecting Refresh manually, you can set up automatic Refresh of log data every 10 seconds, 2 minutes,... that we provide.
4
The area adds a list of log fields
Dislayed fields : list of default fields and fields you choose to display Log in the content frame.
If you want to display more fields, tick the fields listed in Available fields .
In addition, you can also rearrange the order of displayed fields by dragging and dropping the 3-dot icon in the fields.
5
Chart display area.
6
Logs data display area:
In the middle frame, the system will return Log lines according to your choice with 3 factors
Only display Logs that satisfy the conditions of the search and filter frames in Area 2 .
Only display Log lines within the time frame selected in Area 3.
Displays the values of the fields in the Displayed field in Area 4. To see the full Logs line, click on the Logs line to see details.
When too many Logs are returned, the system will display a portion and lazy load when you scroll down.
7
Area for you to export logs, refer to Export logs
4. Continue searching and analyzing logs .
