# Create Live Transcode Channel

To create a Live Transcode channel, follow these instructions:

## Install Sigma Media Server <a href="#cai-dat-sigma-media-server" id="cai-dat-sigma-media-server"></a>

First, you need to install Sigma Media Server following the steps [here](https://docs-vngcloud-vn.translate.goog/vng-cloud-document/vn/vcdn/loai-hinh-dich-vu/transcoding/cai-dat-sigma-media-server) .

## Initialize and configure Media Service for livestreaming. <a href="#khoi-tao-va-cau-hinh-dich-vu-media-service-de-livestream" id="khoi-tao-va-cau-hinh-dich-vu-media-service-de-livestream"></a>

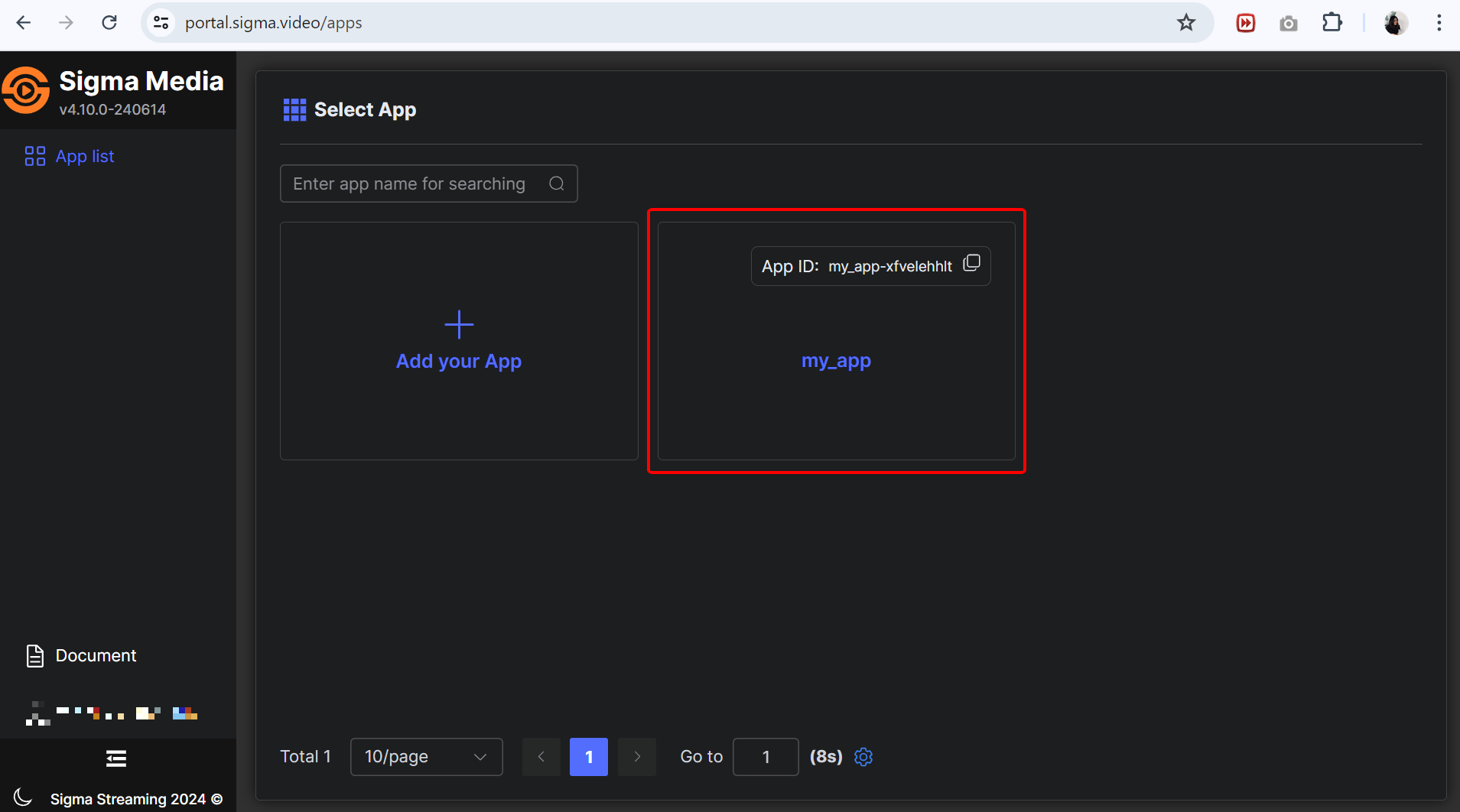

**Step 1:** After successfully installing **Sigma Media Server** , access <https://portal.sigma.video/apps> with the email you previously registered to use the service.

<figure><img src="https://1985221522-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F7rE7M1L7GYcwQzNGd0aB%2Fuploads%2Fgit-blob-852e6960d3aa41fceb503c8e8054bb0dca85d85e%2Fimage%20(21)%20(1)%20(1)%20(1)%20(1)%20(1).png?alt=media" alt=""><figcaption></figcaption></figure>

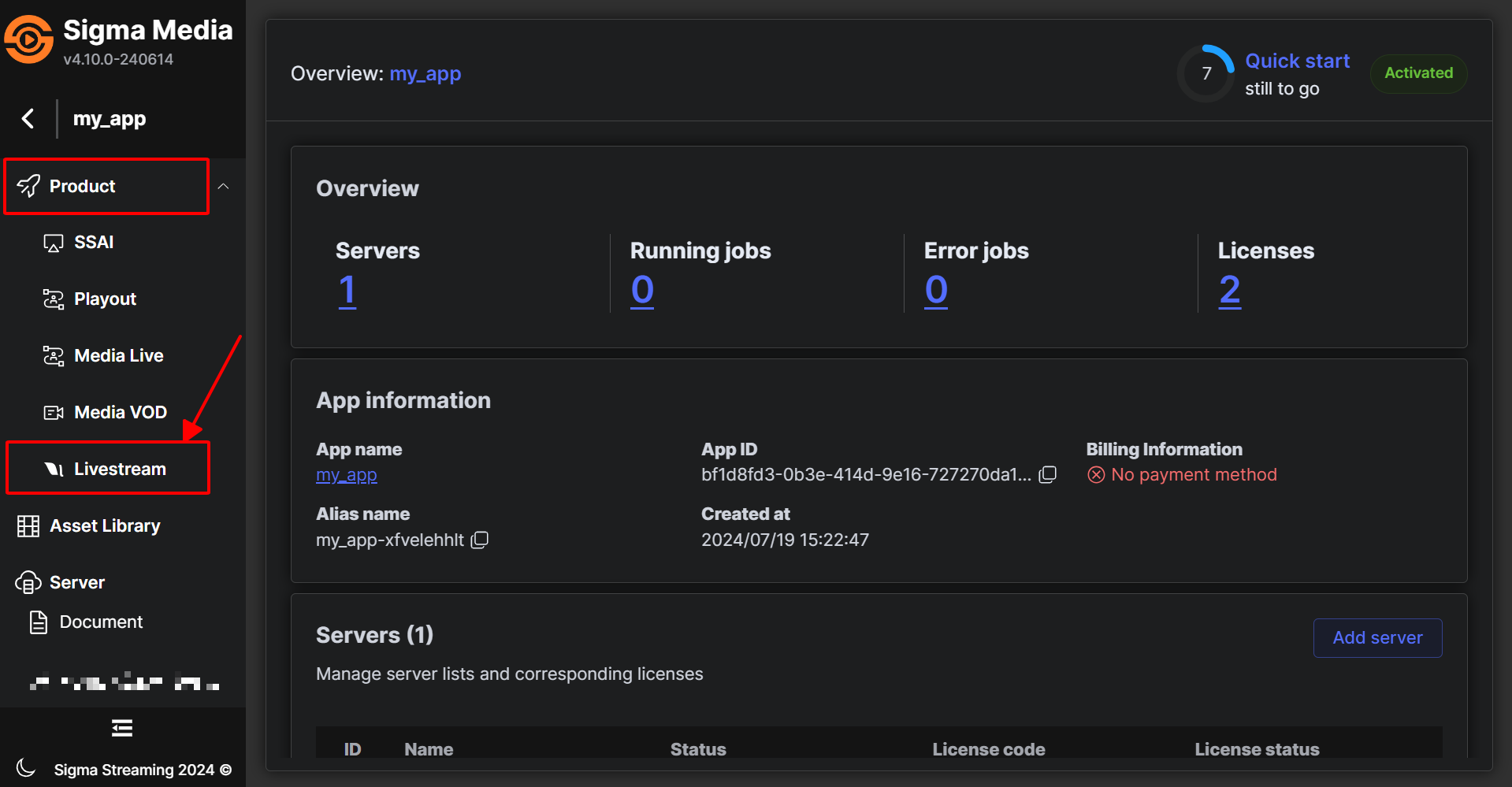

**Step 2:** Select the **Product** drop-down menu and select **Livestream**

<figure><img src="https://1985221522-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F7rE7M1L7GYcwQzNGd0aB%2Fuploads%2Fgit-blob-88f3d7ed87bca57db4418e98fb6420be2b6660b0%2Fimage%20(22)%20(1)%20(1)%20(1)%20(1)%20(1).png?alt=media" alt=""><figcaption></figcaption></figure>

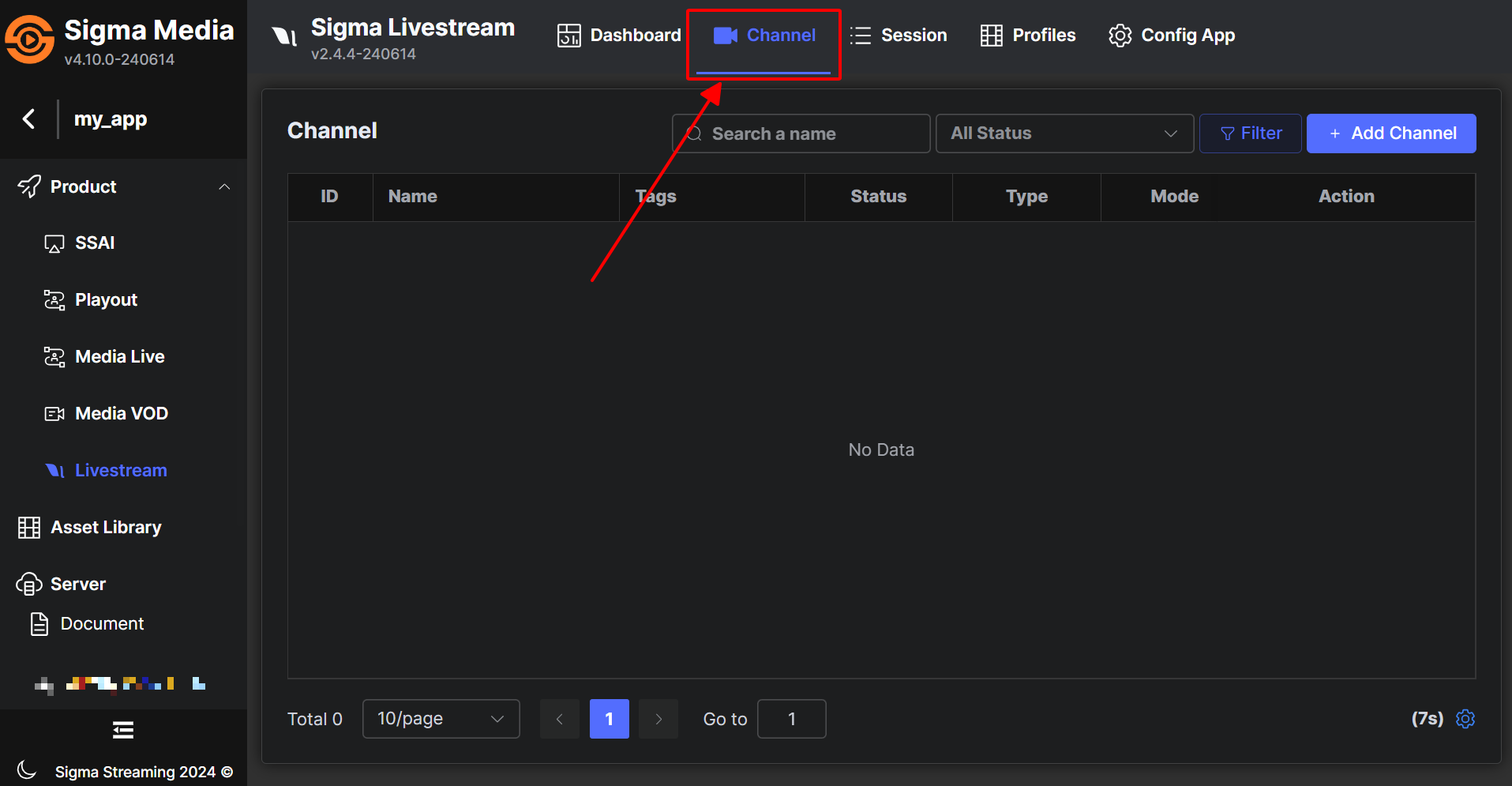

**Step 3:** Continue to select **the Channel tab**

<figure><img src="https://1985221522-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F7rE7M1L7GYcwQzNGd0aB%2Fuploads%2Fgit-blob-7120b162a09df557cb9fa8e1292778aa786eb9cb%2Fimage%20(23)%20(1)%20(1)%20(1)%20(1)%20(1).png?alt=media" alt=""><figcaption></figcaption></figure>

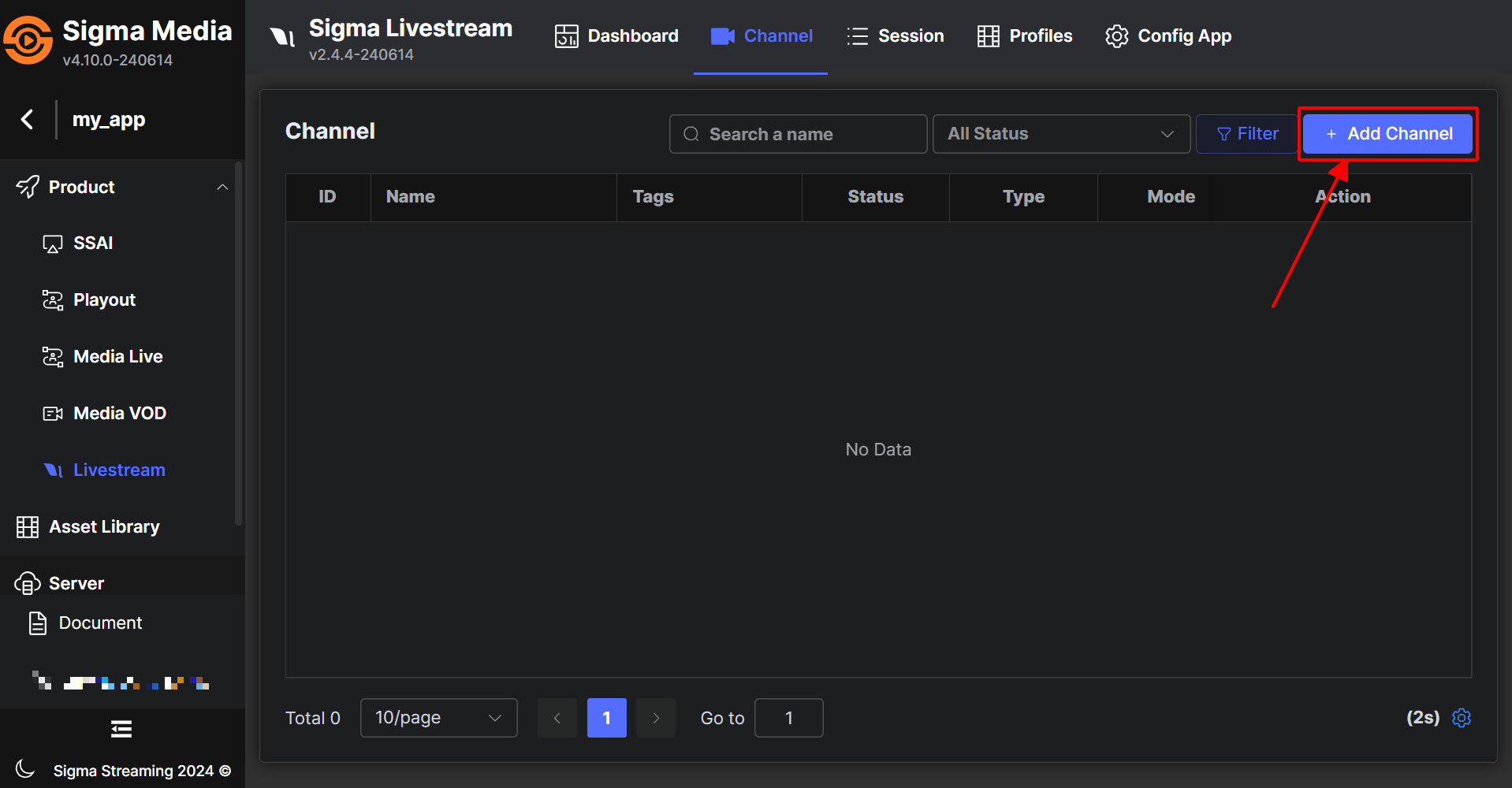

**Step 4:** Select the **Add channel** button in the right corner

<figure><img src="https://1985221522-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F7rE7M1L7GYcwQzNGd0aB%2Fuploads%2Fgit-blob-b07b5e8ad520f49d974813bd50b97ed5a15b7f10%2Fimage%20(24)%20(1)%20(1)%20(1)%20(1)%20(1).png?alt=media" alt=""><figcaption></figcaption></figure>

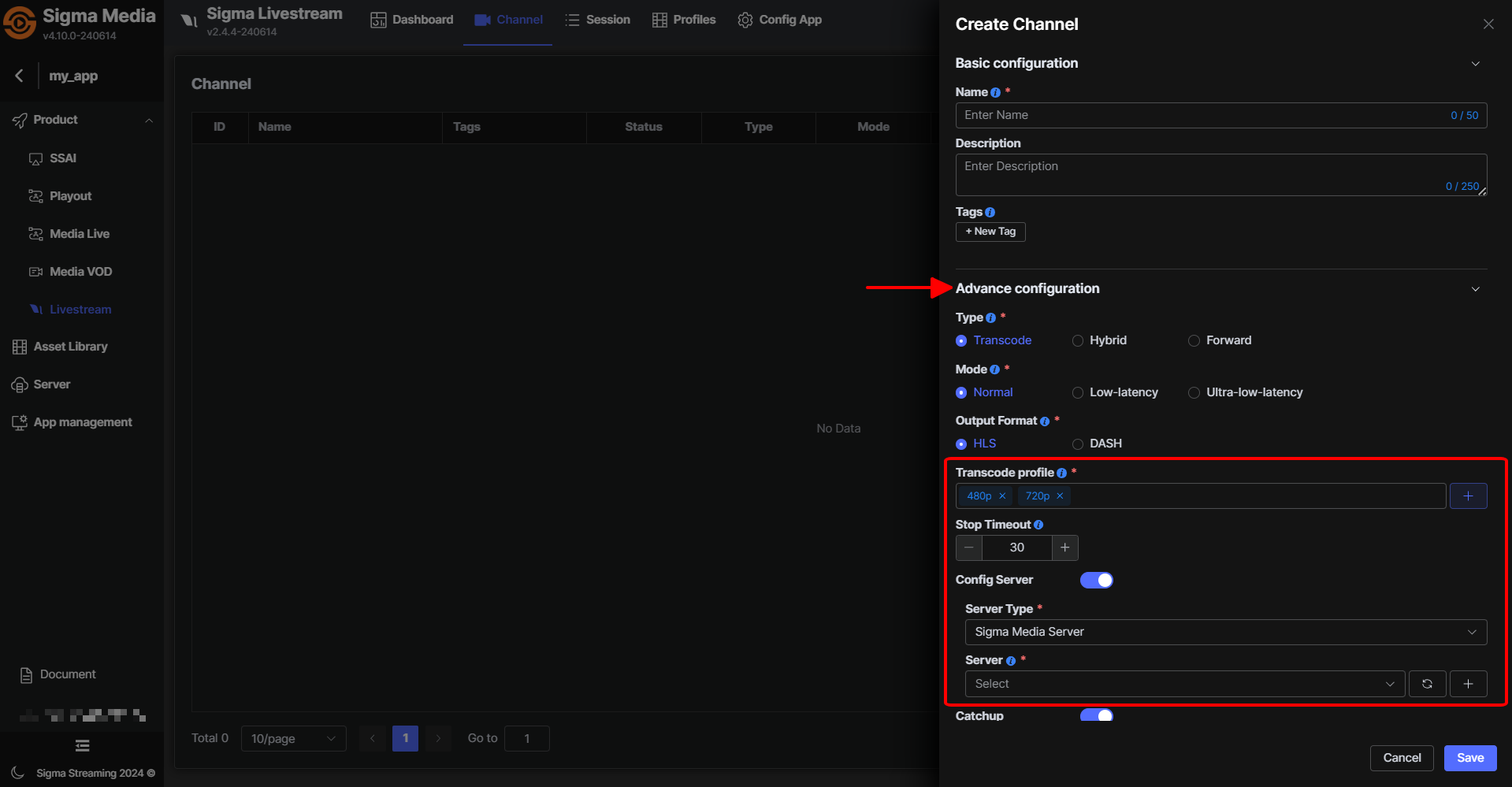

**Step 5: The Create Channel** screen appears, you configure the channel parameters, select the processing server in the **Advance configuration** section.

<figure><img src="https://1985221522-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F7rE7M1L7GYcwQzNGd0aB%2Fuploads%2Fgit-blob-e28b747ed25bb150b3a933aa79dee31c658f6300%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

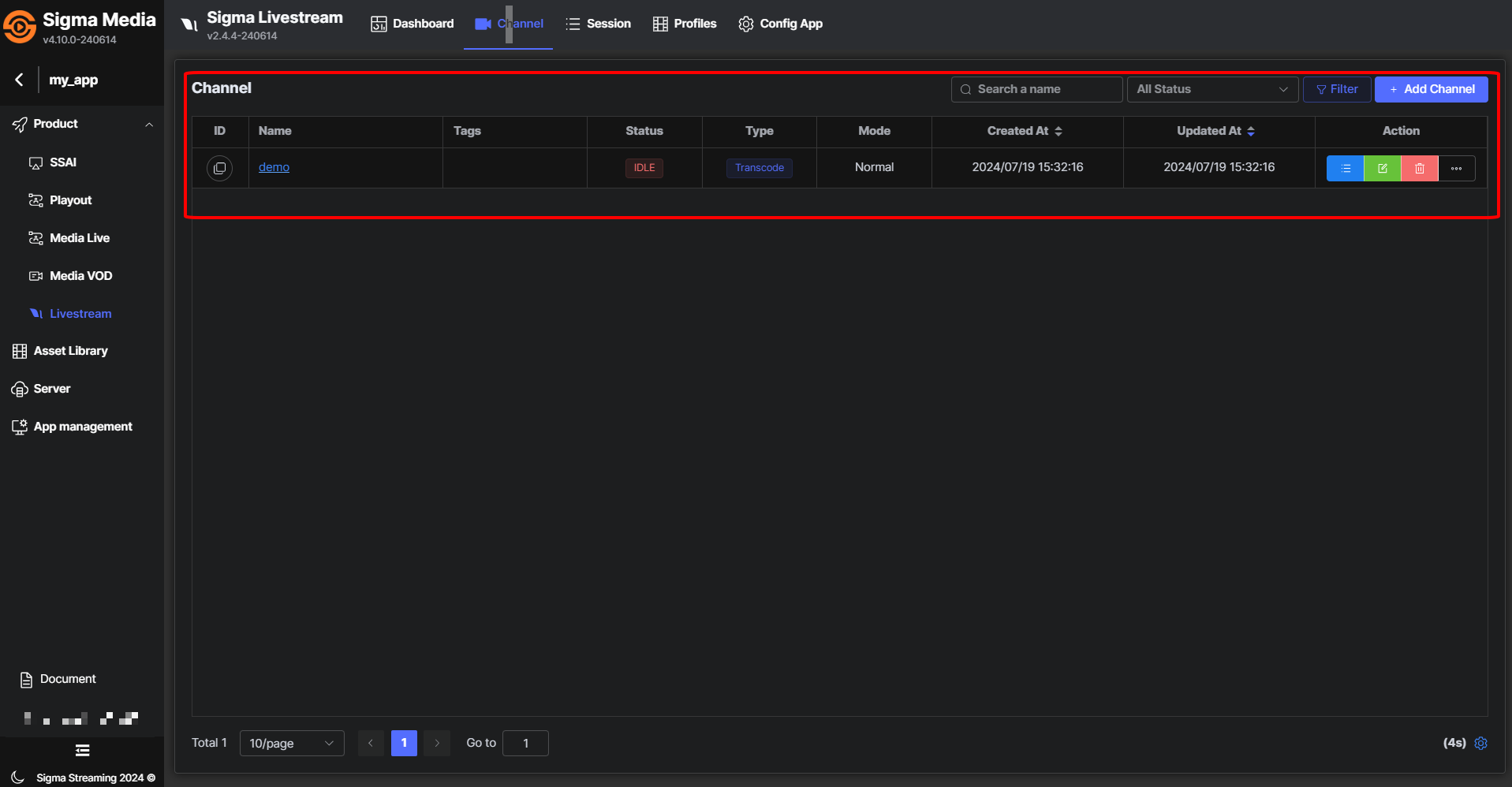

**Step 6:** Return to the **Channel** list screen and we will see the newly created channel in the list. Click on the channel name to go to the channel detail screen.

<figure><img src="https://1985221522-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F7rE7M1L7GYcwQzNGd0aB%2Fuploads%2Fgit-blob-18fd9d86bdb0657a8322b9b72c2cacb238c0edf4%2Fimage%20(26)%20(1)%20(1)%20(1)%20(1)%20(1).png?alt=media" alt=""><figcaption></figcaption></figure>

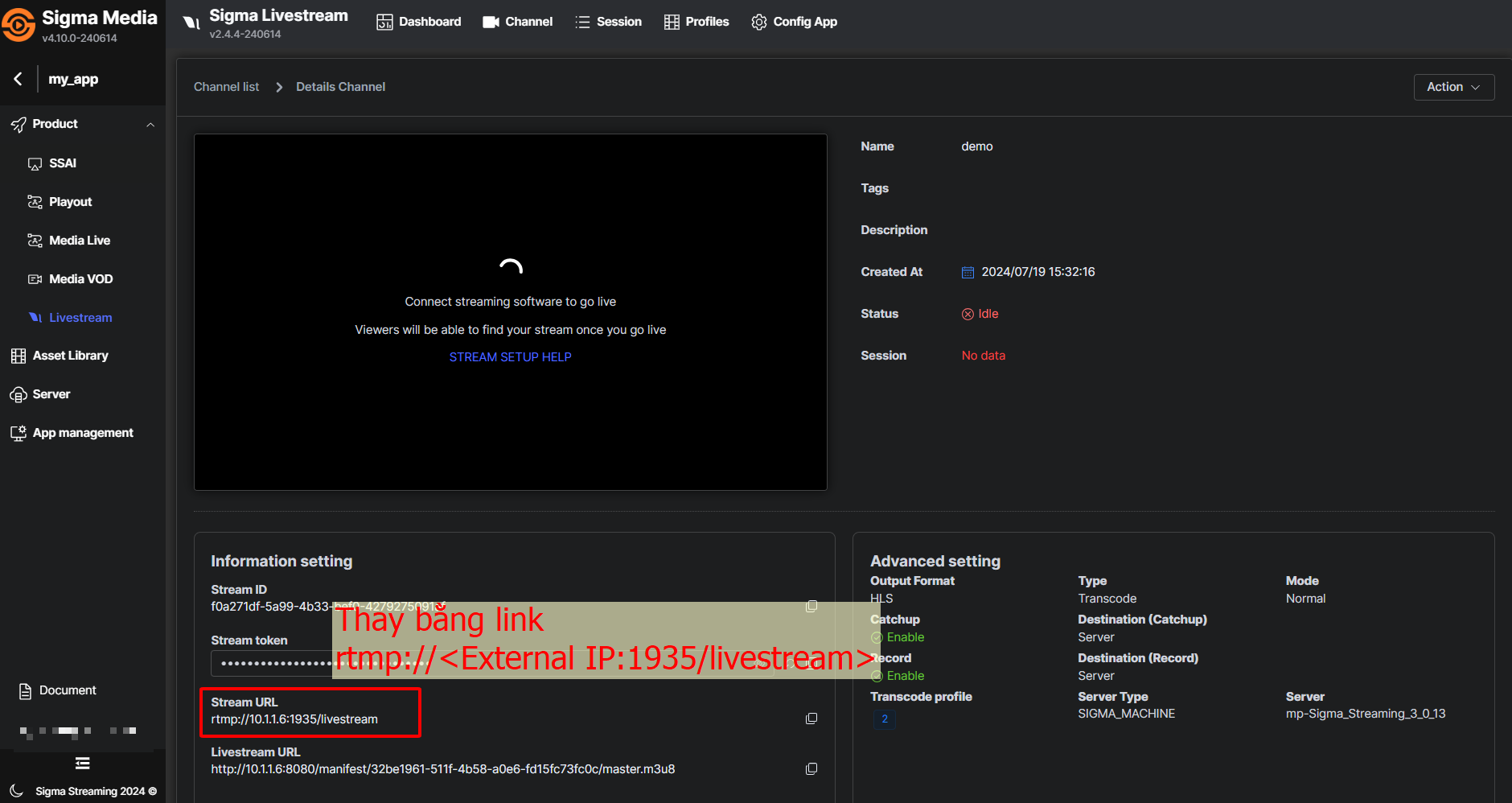

**Step 7:** In the channel detail screen, we will see the RTMP Stream URL information. Replace **the Stream URL** on the screen with *<mark style="color:blue;">**rtmp\://\<server\_public\_ip>:1935/livestream**</mark>* to stream.

<figure><img src="https://1985221522-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F7rE7M1L7GYcwQzNGd0aB%2Fuploads%2Fgit-blob-a9c3ee2b6c7b189901e18858b5e08d2fcefe988d%2Fimage%20(19)%20(1)%20(1)%20(1)%20(1)%20(1).png?alt=media" alt=""><figcaption></figcaption></figure>

## Initialize and configure the vCDN service. <a href="#khoi-tao-va-cau-hinh-dich-vu-vcdn" id="khoi-tao-va-cau-hinh-dich-vu-vcdn"></a>

**Step 1:** You access [GreenNode – ](https://vcdn.vngcloud.vn/)[vCDN ](https://vcdn.vngcloud.vn/)[Portal](https://vcdn.vngcloud.vn/)

**Step 2:** Create a CDN domain for **Live Streaming** following the instructions [here](https://docs-vngcloud-vn.translate.goog/vng-cloud-document/vn/vcdn/loai-hinh-dich-vu/live-streaming) .

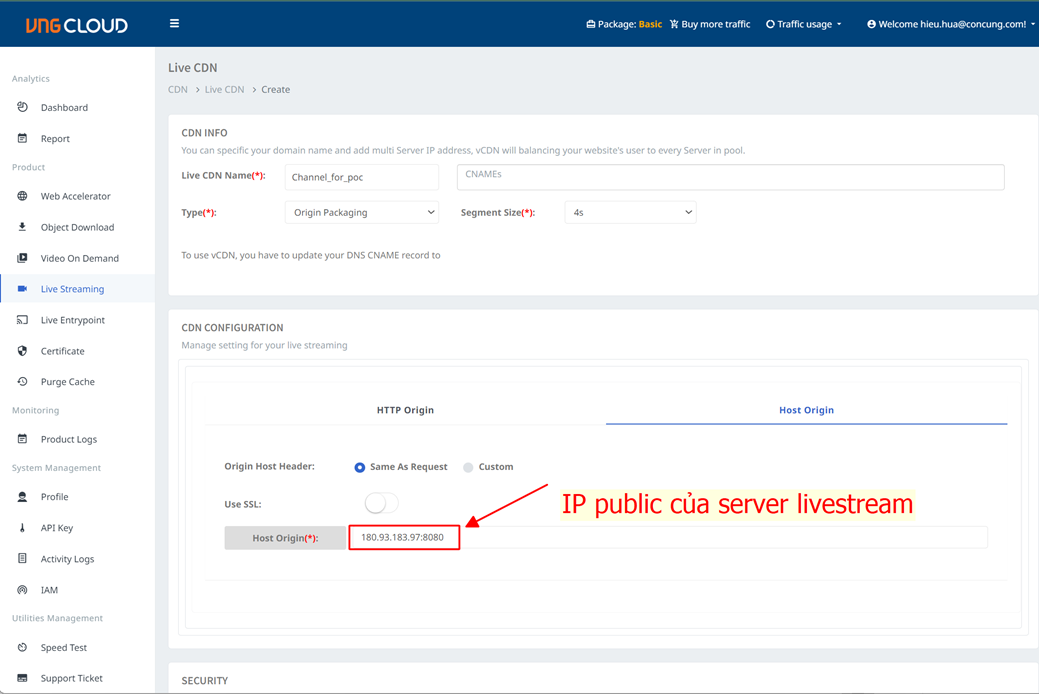

**Step 3** : Point the CDN **Origin to the Sigma server** that is processing the livestream.

<figure><img src="https://1985221522-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F7rE7M1L7GYcwQzNGd0aB%2Fuploads%2Fgit-blob-935876ea5eaa39acf40f9173fb2584178309192c%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>
