GEO IP Parser

Overview

GEO IP Parser is a tool that analyzes and determines the geographic location of an IP address. GEO IP Parser can provide you with information such as country, city, longitude, latitude, Internet service provider (ISP), domain name, time zone, and other information of an address IP.

Configure GEO IP Parser

To configure GEO IP Parser, follow the instructions below:

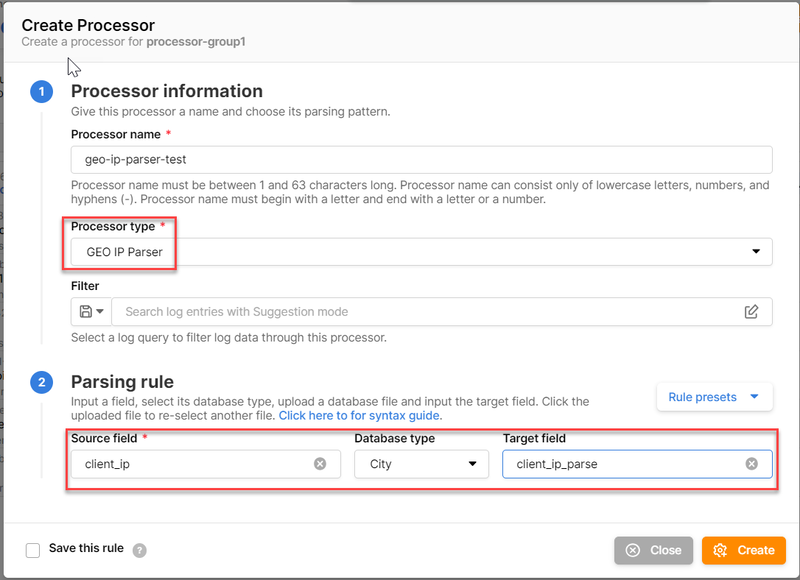

In the Processor information section , enter general information for a processor according to the instructions in Processor . In this content, you will choose Processor type as GEO IP Parser .
In the Parsing rule section , enter the following information:

Enter Source field : field containing logs that will need to be parsed.
Enter Database type: source and format of the IP address and geolocation database. By default, the system will select City , which means you need to analyze the address location at the city level. If you choose ASN , it is a database of IP addresses and geographic locations based on Autonomous System Number (ASN).
Enter Target field : field will be overwritten in destination log project, normally you will not need to enter this information.

For example:

Source log project

Destination log project

Client_IP (field logs mà chúng tôi thực hiện parser)

Parser result

webserver

webserver-parse

"client_ip: "31.184.238.22"

"client_ip_parse": { "ip": "182.34.27.162", "latitude": 36.0986, "longitude": 120.3719, "country_name": "China", "location": { "lat": 36.0986, "lon": 120.3719 }, "continent_code": "AS", "region_name": "Shandong", "country_code2": "CN", "timezone": "Asia/Shanghai", "country_code3": "CN", "region_code": "SD" },

Store and reuse Parsing rules

You can store a parsing rule by checking Save this rule , then entering a memorable name for the parsing rule you want to store. The mnemonic name has a minimum length of 5 characters, a maximum length of 255 characters and can only include upper and lower case letters (az, AZ), numbers (0-9), and dots (.), space ( ), underscore (_), hyphen (-), and the @ character.
After the parsing rule has been stored, in subsequent processor creations you can reuse this rule by selecting Rule presets in the Pasing rule section.

PreviousDate Parser NextUser-agent Parser
