# Create Endpoint

{% hint style="danger" %}
**Important**

* Within the same region, users can create **multiple Endpoints within a single VPC**.
* If the option **“Enable Private DNS”** is selected during Endpoint creation, **manual host file configuration is not required** — DNS resolution is handled automatically.
* If **Private DNS is not enabled**, users must **manually add host entries** on each server in order to access the Endpoint Service.
  {% endhint %}

## **Endpoint Creation Process**

1. **Log in** to the GreenNode console at:\
   <https://hcm-3-vnetwork.console.vngcloud.vn/endpoint/list>
   * Ensure that the selected **region is HCM**.
2. From the left-hand navigation panel, click on the **“Endpoint”** menu.
3. Click **“Create an Endpoint”** to begin the setup process.
4. Enter the required information for the Endpoint:
   * **Endpoint Name**: Provide a name for the new Endpoint.
   * **Select Region/Zone**: Choose the appropriate region and availability zone (e.g., HCM-1A, HCM-1B, etc.).
   * **Select Service**: Choose a GreenNode service to connect to from the supported list:\
     **vServer, vStorage, vMonitor, vCR, IAM**.
   * **Service Package**: The Endpoint is provisioned with the default **Standard** package.
     * No manual selection is required.
5. **Select the VPC and Subnet** to connect to the GreenNode service via the service Endpoint.
6. **Private DNS Configuration**:
   * If the selected VPC supports DNS, the **“Enable Private DNS”** option will be available.
     * When enabled, domain names will automatically resolve to internal IPs — **no manual host entries are required**.
   * If the VPC **does not support DNS**, the option will be **disabled by default**.
     * In this case, users **must manually configure host entries** to access the service.
7. Review service pricing and configuration details in the **“Summary”** section.
8. Click **“CREATE ENDPOINT”** to proceed.
9. The system will begin provisioning the Endpoint.
   * Once creation is complete, the new Endpoint will appear in the **Endpoint list view**.

## **How to Use the Endpoint**

### **For Endpoints Created in VPCs Without DNS Support**

When the VPC does **not** support DNS, the **"Enable Private DNS"** option will be **unavailable** during Endpoint creation.\
As a result, **DNS name resolution will not be applied automatically**, and users will **not be able to access the Endpoint Service** directly after creation.

#### **Manual Configuration Steps:**

To configure private access from your server to the Endpoint Service, follow these steps:

1. **Open the Endpoint Management Page**
   * Navigate to the list of created Endpoints.
   * Select the Endpoint you wish to configure.
2. **Identify Key Information**\
   On the Endpoint detail page, the system will display two important items:
   * **Endpoint URL**: The public domain name for accessing the service via the Endpoint.
   * **Endpoint IP**: The internal IP address assigned to the Endpoint.
3. **Configure the Host File on Your Server**\
   On each server that needs to access the service, add a host entry:

   * For **Linux/macOS**: `/etc/hosts`
   * For **Windows**: `C:\Windows\System32\drivers\etc\hosts`

   **Entry format:**

   ```php
   <Endpoint IP>    <Endpoint URL>
   ```

   **Example:**

   ```php
   10.0.5.123    service.example.internal
   ```
4. **Save changes** and verify that domain name resolution points to the correct Endpoint IP.

> ✅ **Note:** Host entry configuration is only required on servers located within the same VPC or that have a valid network route to the Endpoint Service.

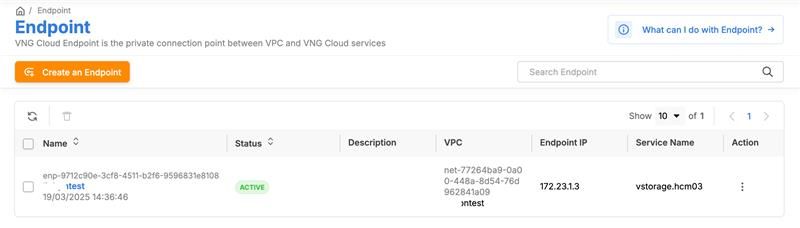

<figure><img src="https://1985221522-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F7rE7M1L7GYcwQzNGd0aB%2Fuploads%2Fgit-blob-b940a89fe6557572ca5d5b2177caa76fb8421bb5%2Fimage%20(12).png?alt=media" alt=""><figcaption><p>Endpoint List</p></figcaption></figure>

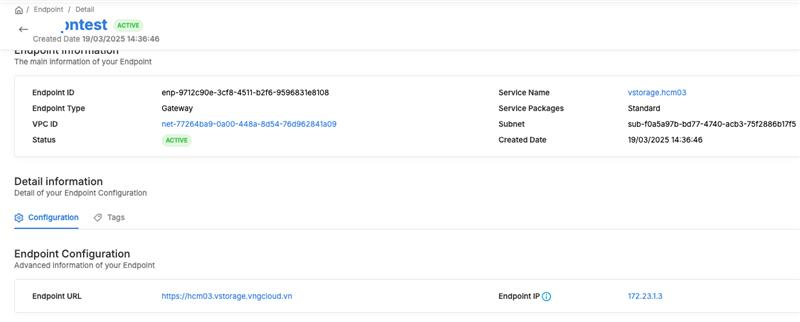

<figure><img src="https://1985221522-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F7rE7M1L7GYcwQzNGd0aB%2Fuploads%2Fgit-blob-4906caaf7a950b98c20efdb794eccf67ed73a51a%2Fimage.png?alt=media" alt=""><figcaption><p>Endpoint Detail</p></figcaption></figure>

Add host entries on servers that need to access the service via the Endpoint Service.

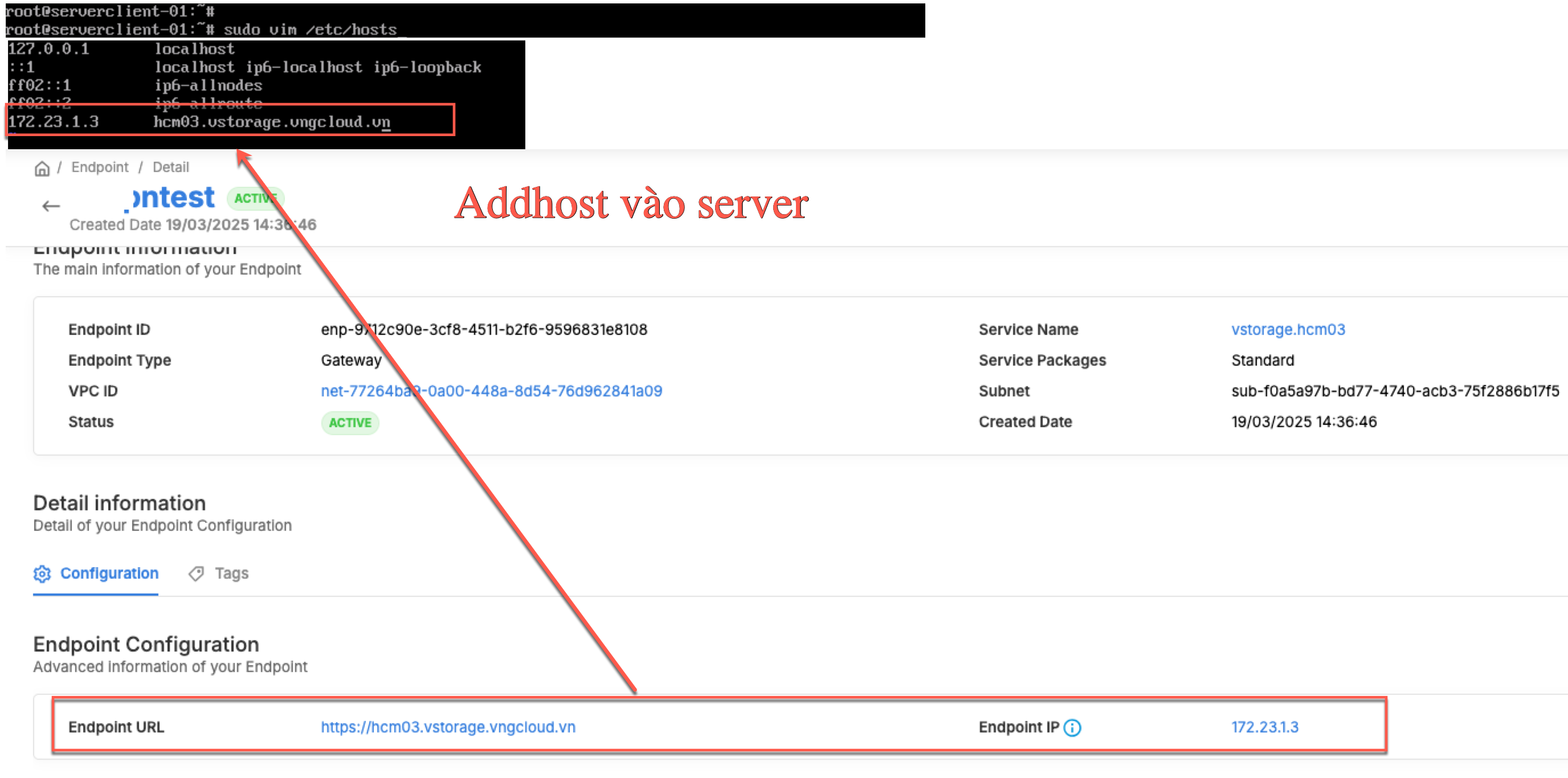

<figure><img src="https://1985221522-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F7rE7M1L7GYcwQzNGd0aB%2Fuploads%2Fgit-blob-657627af3e3f09635b9000d7490ddfc58f797f00%2Fimage.png?alt=media" alt=""><figcaption><p>Add host</p></figcaption></figure>

<figure><img src="https://1985221522-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F7rE7M1L7GYcwQzNGd0aB%2Fuploads%2Fgit-blob-bbde9df6647cf397e72a766987d69ac5b01ca610%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

### Private Endpoints in a VPC with DNS Support

When using a **Private Endpoint**, customers can access GreenNode services through a **private network** instead of the public internet. If DNS support is enabled, service access becomes seamless and more convenient, thanks to the ability to **override DNS A records**.

#### DNS Mechanism with Private Endpoints

**a. Unique Domain per Endpoint**

When a Private Endpoint is created with **DNS support enabled**, the system assigns a **unique domain name** to the endpoint. This domain can be used to access the corresponding service directly via the **private IP** of the endpoint.

**Example**:\
Private domain for the `vStorage HCM03` service:

> <https://enp-ccd7fa25-a617-4e87-a929-97a7c933c19c-vstorage-hcm03.vpce.vngcloud.vn>

**b. “Enable Private DNS” Option**

When configuring a Private Endpoint, enabling the **"Private DNS"** option allows an **alternative access method** using the **service's official domain**.

In VPCs that support internal DNS resolution (DNS override), the **A record** of the service's domain will be **overridden** to point to the **private IP of the endpoint** instead of the public IP.

> 🔒 This ensures all traffic remains on the private network while keeping the domain name unchanged.

**Important constraint**:\
Each VPC is allowed to have **only one endpoint with Private DNS enabled per service**.

**Example**:\
Default domain for accessing `vStorage HCM03` service:

> <https://hcm03.vstorage.vngcloud.vn>

**Supported Services and Default Domains**

<table><thead><tr><th width="181.10546875">Services</th><th>Default domain</th></tr></thead><tbody><tr><td>IAM</td><td>iamapis.vngcloud.vn</td></tr><tr><td>vMonitor</td><td>monitoring-agent.vngcloud.vn</td></tr><tr><td>vCR</td><td>vcr.vngcloud.vn</td></tr><tr><td>Veeam</td><td>veeam-gw.vngcloud.vn</td></tr><tr><td>vServer</td><td>hcm3.api.vngcloud.vn</td></tr><tr><td>vStorage (HCM03)</td><td>hcm03.vstorage.vngcloud.vn</td></tr><tr><td>vStorage (HCM04)</td><td>hcm04.vstorage.vngcloud.vn</td></tr></tbody></table>
