Private location
rivate Locations allows you to monitor applications/services located on your internal network or any private endpoints that are not accessible from the internet.
To create a Private Location, follow the instructions below:
Log in to vMonitor Platform here.
Select the Synthetic test folder .
Select Location.
Select Create a location.

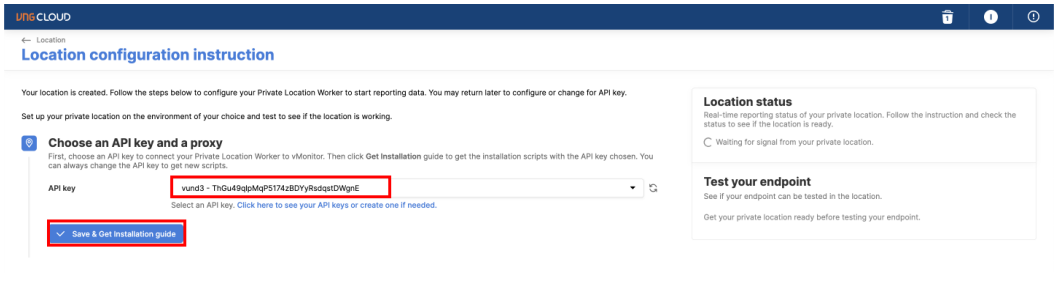

Next step select API Key to have authentication information between Private Location and VNG Cloud and select Save & Get Installation Guide so that the system will generate the necessary configurations and commands for you to install.
![](https://docs.vngcloud.vn/~gitbook/image?url=https%3A%2F%2F1985221522-files.gitbook.io%2F%7E%2Ffiles%2Fv0%2Fb%2Fgitbook-x-prod.appspot.com%2Fo%2Fspaces%252F7rE7M1L7GYcwQzNGd0aB%252Fuploads%252FkkG5sXl8SuH29A7lzqhG%252Fimage.png%3Falt%3Dmedia%26token%3D56b7922b-0907-4830-a58d-648244b7e5c1&width=768&dpr=4&quality=100&sign=73a32a13&sv=1)

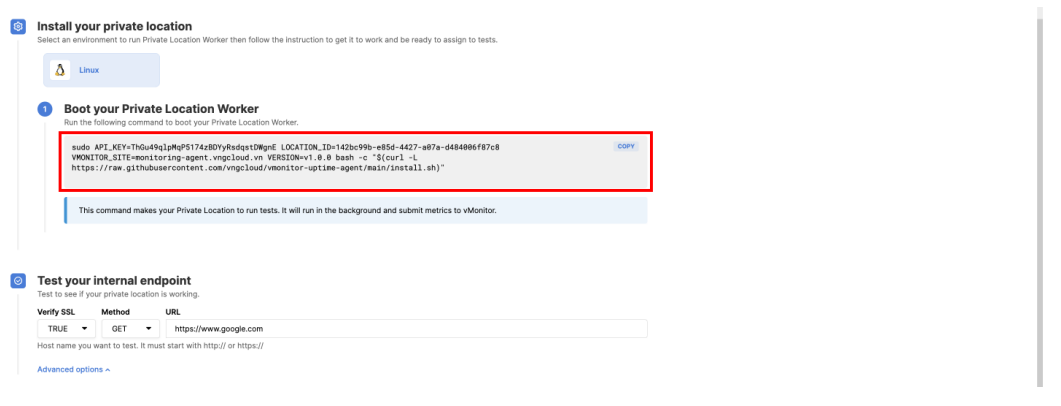

6. The system will generate a command for you to install Synthetic Worker on Private Location, you just need to copy the command and install
![](https://docs.vngcloud.vn/~gitbook/image?url=https%3A%2F%2F1985221522-files.gitbook.io%2F%7E%2Ffiles%2Fv0%2Fb%2Fgitbook-x-prod.appspot.com%2Fo%2Fspaces%252F7rE7M1L7GYcwQzNGd0aB%252Fuploads%252FnvQsgtNQ7x1dlUTv36rm%252Fimage.png%3Falt%3Dmedia%26token%3D2b2c0540-db89-4bd1-9330-a1a05063086b&width=768&dpr=4&quality=100&sign=d74fd3d9&sv=1)

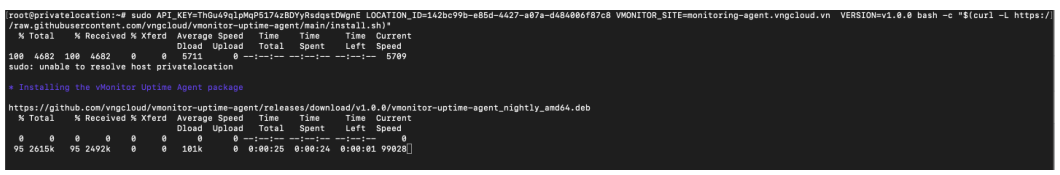

7. Install Synthetic Worker with the above command
![](https://docs.vngcloud.vn/~gitbook/image?url=https%3A%2F%2F1985221522-files.gitbook.io%2F%7E%2Ffiles%2Fv0%2Fb%2Fgitbook-x-prod.appspot.com%2Fo%2Fspaces%252F7rE7M1L7GYcwQzNGd0aB%252Fuploads%252FcC6s4lvCGJVwTtZmemc7%252Fimage.png%3Falt%3Dmedia%26token%3Dc808d142-169a-46f6-96a7-17ee1ca8f75c&width=768&dpr=4&quality=100&sign=74262c01&sv=1)

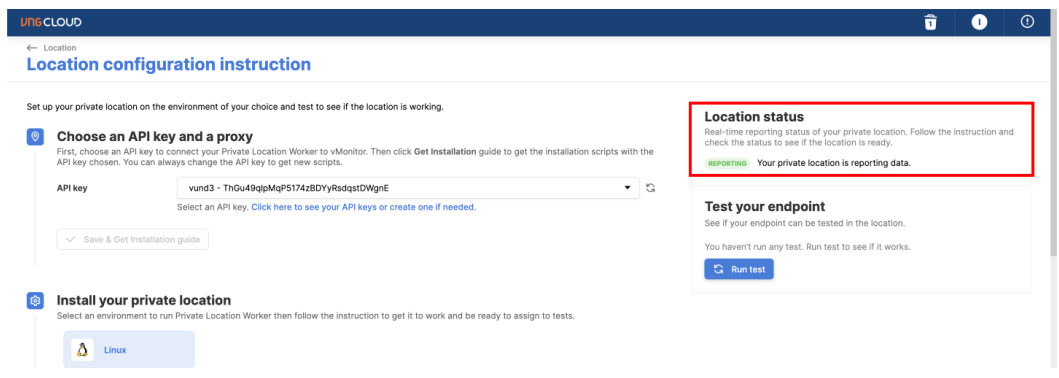

8. After the Synthetic Worker installation process is completed, you will see vMonitor report that the connection has been successful.
![](https://docs.vngcloud.vn/~gitbook/image?url=https%3A%2F%2F1985221522-files.gitbook.io%2F%7E%2Ffiles%2Fv0%2Fb%2Fgitbook-x-prod.appspot.com%2Fo%2Fspaces%252F7rE7M1L7GYcwQzNGd0aB%252Fuploads%252FaZsgsMqH8fHdILWxxDTo%252Fimage.png%3Falt%3Dmedia%26token%3D7d718d96-91ff-4764-bd28-a367b58d4a4e&width=768&dpr=4&quality=100&sign=8762fe76&sv=1)

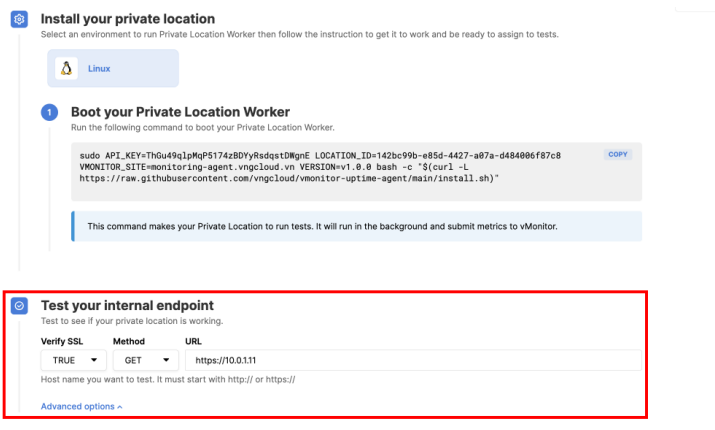

9. You can fill in an internal endpoint to check if the system operates successfully
![](https://docs.vngcloud.vn/~gitbook/image?url=https%3A%2F%2F1985221522-files.gitbook.io%2F%7E%2Ffiles%2Fv0%2Fb%2Fgitbook-x-prod.appspot.com%2Fo%2Fspaces%252F7rE7M1L7GYcwQzNGd0aB%252Fuploads%252FA3bPZFCs1QzHdRBNuNwO%252Fimage.png%3Falt%3Dmedia%26token%3D6802a14e-f325-458d-b8a5-d2f040bfece0&width=768&dpr=4&quality=100&sign=9ecea4de&sv=1)

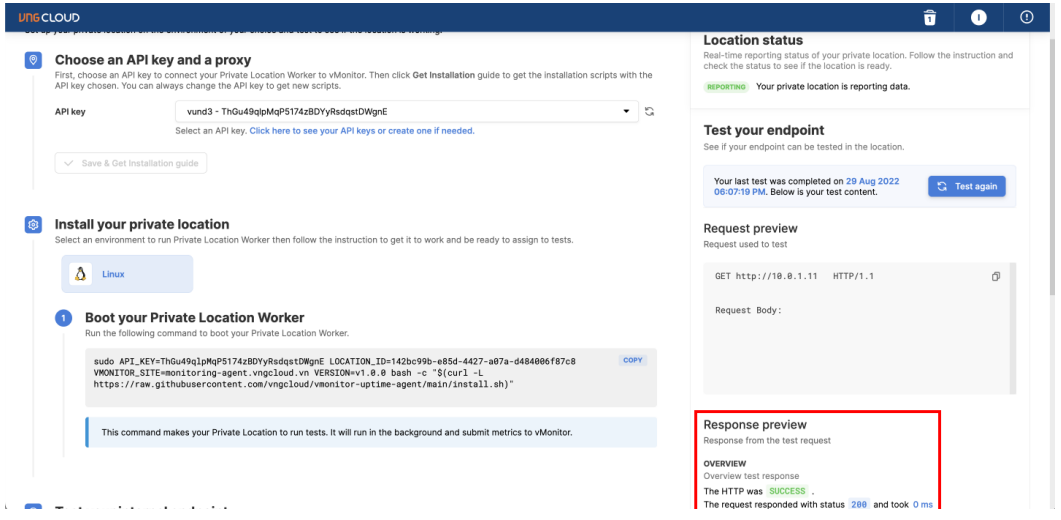

10. Result Test internal endpoint was successful
![](https://docs.vngcloud.vn/~gitbook/image?url=https%3A%2F%2F1985221522-files.gitbook.io%2F%7E%2Ffiles%2Fv0%2Fb%2Fgitbook-x-prod.appspot.com%2Fo%2Fspaces%252F7rE7M1L7GYcwQzNGd0aB%252Fuploads%252FPZWaOvXALEFVnStPl5nM%252Fimage.png%3Falt%3Dmedia%26token%3D73d31741-0a4f-4bb5-974e-95f315abc1f1&width=768&dpr=4&quality=100&sign=d3dea780&sv=1)

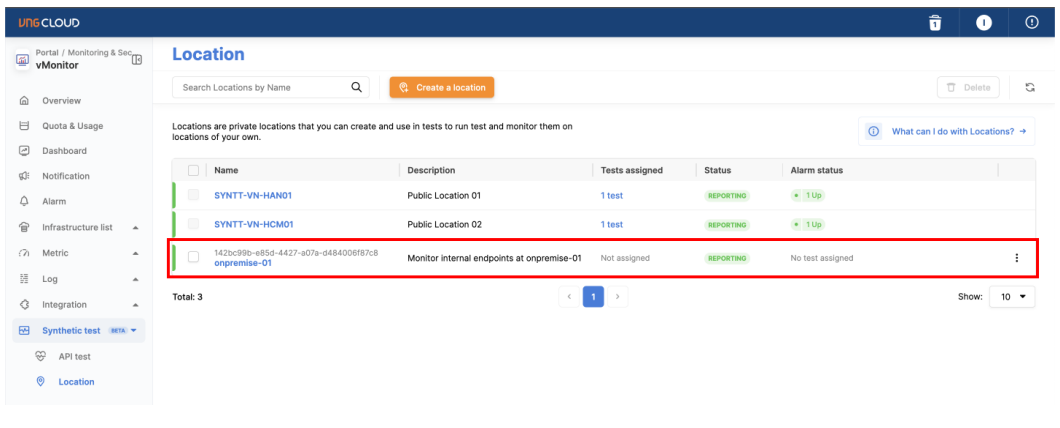

11. Additionally, you can also view the status of Private Location on the Location page
![](https://docs.vngcloud.vn/~gitbook/image?url=https%3A%2F%2F1985221522-files.gitbook.io%2F%7E%2Ffiles%2Fv0%2Fb%2Fgitbook-x-prod.appspot.com%2Fo%2Fspaces%252F7rE7M1L7GYcwQzNGd0aB%252Fuploads%252FDu63LkV8ZykamGIQpakX%252Fimage.png%3Falt%3Dmedia%26token%3Db5efb5a8-b06a-441a-a7ae-ec49f157652b&width=768&dpr=4&quality=100&sign=68954f46&sv=1)
