Bar

Overview

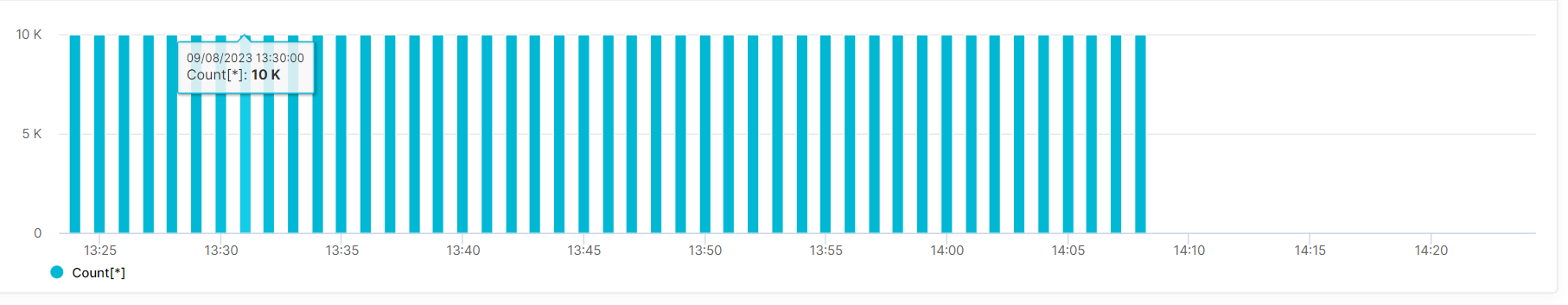

Bar chart is a type of chart used to compare values of different groups or categories. In the vMonitor Platform, a bar chart consists of multiple vertical bars, each representing a value of a group or data point.

---

Widget Configuration

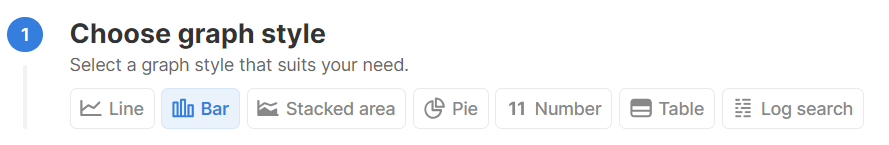

1. Choose graph style

For a bar chart, select Bar for the Style.

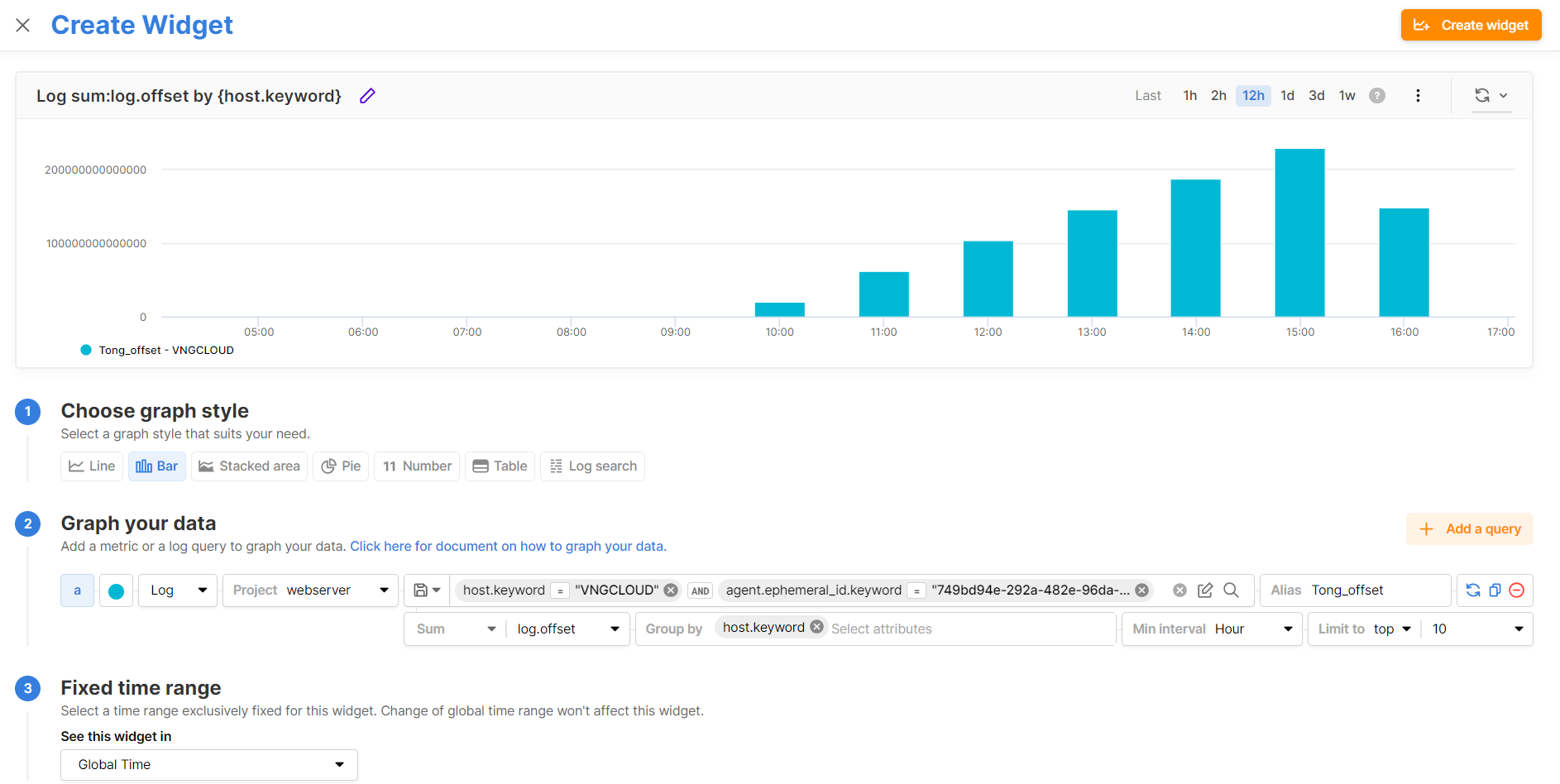

2. Graph your data

Select data type to draw Widget:

• Metrics: No Support.

• Logs: view Log Query to configure for the type of Logs data.

Alias: You can set an Alias for each query; this alias will be displayed on the graph and legend. This is very useful for long metric names, logs, or queries with extensive filters.

3. Fixed time range

A fixed time range is an attribute of a Widget that you can set to filter data within the Widget based on a specific time range, independent of the Dashboard's time range. Each Widget can have its own Fixed time range settings, and you can select from the time ranges described in the table below. For example, if you select Global time, the data period displayed on the Widget will match the period selected on the Dashboard. Thus, changing the Dashboard's data period will also alter the Widget's data period accordingly. This option is recommended. If you choose Pass N minutes (N = 5, 10,...), the data period on the Widget remains fixed (unchanged) at 5, 10,...minutes prior.

4. Configure graph

For each type of chart: Line, Bar, Stacked Area, Pie, you need to select the corresponding chart attributes. The attributes are described in the table below:

Parameter	Options
Graph legend	Hidden, Top, Bottom, Left, Right
Connect nulls	Enable, Disable
Y-axis lable	Custom value
Y-axis scale type	Linear, Logarithmic
Y-axis Max value	Custom value
Y-axis Max value	Custom value

Select Create to create a Widget. If you need to change the widget name, you can edit it in Widget name.
