Using CNI Cilium Overlay

Overview

CNI Cilium Overlay in VKS is a type of overlay network that uses eBPF (extended Berkeley Packet Filter) to enhance network performance and security. Compared to solutions like Calico Overlay , Cilium offers higher performance thanks to its ability to process traffic directly in the kernel using eBPF. In addition, Calico often uses iptables to manage traffic, while Cilium with eBPF can handle network policies and application-specific behaviors (Layer 7).

Model

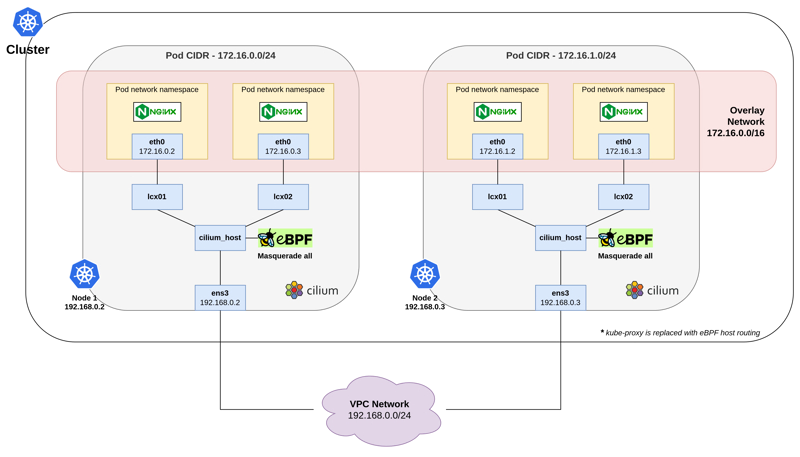

On VKS, Cilium Overlay works according to the following model:

In there:

Pod (eth0) -> lxc01/lxc02 : Pods communicate over a virtual network created by Cilium.
lxc01/lxc02 -> cilium_host : Packets from Pods are forwarded to cilium_host, which is the intermediate layer between the Pod's network and the physical network.
cilium_host -> ens3 : After being processed by Cilium (and eBPF), packets are sent to the physical network via ens3.
ens3 -> VPC Network : Finally, packets are transmitted over the physical network to other nodes or out of the cluster.

Necessary conditions

To be able to initialize a Cluster and Deploy a Workload , you need:

There is at least 1 VPC and 1 Subnet in ACTIVE state . If you do not have any VPC, Subnet, please initialize VPC, Subnet according to the instructions here .
There is at least 1 SSH key in ACTIVE state . If you do not have any SSH key, please initialize SSH key following the instructions here .
kubectl installed and configured on your device. please refer here if you are not sure how to install and use kuberctl. In addition, you should not use an outdated version of kubectl, we recommend that you use a kubectl version that is no more than one version different from the cluster version.

Initialize a Cluster using Cilium Overlay

To initialize a Cluster, follow the steps below:

Step 1: Access https://vks.console.vngcloud.vn/overview

Step 2: On the Overview screen , select Activate.

Step 3: Wait until we successfully initialize your VKS account. After successfully Activating, select Create a Cluster.

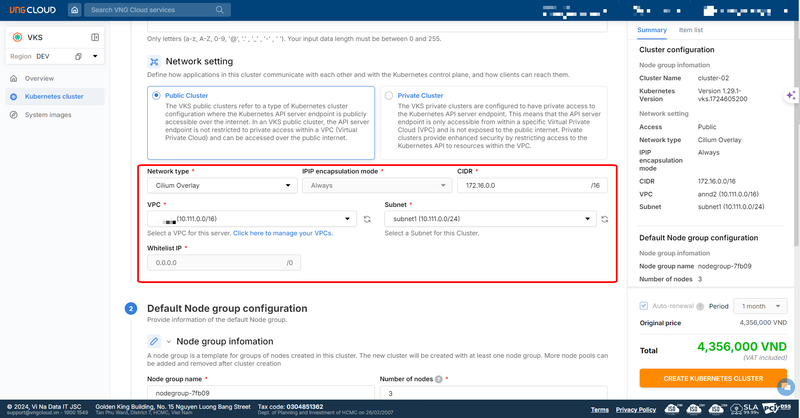

Step 4: At the Cluster initialization screen, we have set up the information for the Cluster and a Default Node Group for you. To use Cilium Overlay for your Cluster , please select:

Network type : Cilium Overlay

Field

Meaning

Illustrative example

VPC

The IP address range that the Cluster nodes will use to communicate.

In the picture, we choose VPC with IP range 10.111.0.0/16 , corresponding to 65536 IPs

Subnet

A smaller IP address range belonging to the VPC. Each node in the Cluster will be assigned an IP from this Subnet. The Subnet must be within the IP range of the selected VPC.

In the picture, we choose Subnet with Primary IP range of 10.111.0.0/24 , corresponding to 256 IPs

IP-IP encapsulation mode

IP-IP encapsulation mode in VKS is Always

In the figure, we select Always mode to always encapsulate packets.

CIDR

The virtual network range that the pods will use

In the picture, we choose the virtual network range as 172.16.0.0/16. The pods will get IP from this IP range.

Attention:

Only one networktype: In a cluster, you can use only one of three networktypes: Calico Overlay, Cilium Overlay, or Cilium VPC Native Routing
Multiple subnets for a cluster: VKS supports the use of multiple subnets for a cluster. This allows you to configure each node group in the cluster to be located on different subnets within the same VPC, helping to optimize resource allocation and network management.

Step 5: Select Create Kubernetes cluster. Please wait a few minutes for us to initialize your Cluster, the status of the Cluster is now Creating .

Step 6: When the Cluster status is Active , you can view Cluster information and Node Group information by selecting Cluster Name in the Name column .

Deploy a Workload

Below are instructions for deploying an nginx deployment and testing IP assignment for the pods deployed in your cluster.

Step 1: Access https://vks.console.vngcloud.vn/k8s-cluster

Step 2: The Cluster list is displayed, select the Download icon and select Download Config File to download the kubeconfig file. This file will give you full access to your Cluster.

Step 3 : Rename this file to config and save it to the ~/.kube/config folder

Step 4: Perform Cluster check via command:

Run the following command to check the node

kubectl get nodes

If the result is as below, it means your Cluster is successfully initialized with 3 nodes:

NAME                                   STATUS   ROLES    AGE     VERSION
vks-cluster-02-nodegroup-7fb09-3a594   Ready    <none>   5m48s   v1.29.1
vks-cluster-02-nodegroup-7fb09-3cb67   Ready    <none>   5m34s   v1.29.1
vks-cluster-02-nodegroup-7fb09-430aa   Ready    <none>   5m52s   v1.29.1

Continue running the following command to check the pods deployed on your kube-system namespace:

k get pods -A

If the result is as below, it means that the pods supporting Cilium Overlay have been successfully run:

NAMESPACE     NAME                                           READY   STATUS    RESTARTS        AGE
kube-system   cilium-8xtwz                                   1/1     Running   1 (5m36s ago)   6m7s
kube-system   cilium-cpxvv                                   1/1     Running   0               5m53s
kube-system   cilium-envoy-b95pg                             1/1     Running   0               6m7s
kube-system   cilium-envoy-dx8qg                             1/1     Running   0               6m11s
kube-system   cilium-envoy-sqdn8                             1/1     Running   0               5m53s
kube-system   cilium-operator-75b8c6f6d4-7x4f6               1/1     Running   0               9m19s
kube-system   cilium-operator-75b8c6f6d4-k7j45               1/1     Running   0               9m19s
kube-system   cilium-zs2cm                                   1/1     Running   1 (5m35s ago)   6m11s
kube-system   coredns-1727408780-5fcf89468-7hmvp             1/1     Running   0               9m24s
kube-system   coredns-1727408780-5fcf89468-v9nbd             1/1     Running   0               9m24s
kube-system   hubble-relay-8899f8cdc-976zf                   1/1     Running   1 (4m3s ago)    9m20s
kube-system   hubble-ui-574c5bb99b-gg7jx                     2/2     Running   0               9m20s
kube-system   konnectivity-agent-46nvd                       1/1     Running   0               5m27s
kube-system   konnectivity-agent-qhq4m                       1/1     Running   0               5m24s
kube-system   konnectivity-agent-xs7bq                       1/1     Running   0               5m21s
kube-system   vngcloud-controller-manager-7c47d64584-z8827   1/1     Running   0               9m21s
kube-system   vngcloud-csi-controller-848f68f46-2hkxl        7/7     Running   2 (4m58s ago)   9m23s
kube-system   vngcloud-csi-controller-848f68f46-bkvkg        7/7     Running   2 (4m56s ago)   9m23s
kube-system   vngcloud-csi-node-8rxbx                        3/3     Running   2 (5m1s ago)    6m7s
kube-system   vngcloud-csi-node-mxknq                        3/3     Running   3 (4m54s ago)   5m53s
kube-system   vngcloud-csi-node-tfrsp                        3/3     Running   2 (5m2s ago)    6m11s
kube-system   vngcloud-ingress-controller-0                  1/1     Running   1 (5m16s ago)   9m7s

Step 2: Deploy nginx on the newly created cluster:

Initialize the nginx-deployment.yaml file with the following content:

apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-app
spec:
  selector:
    matchLabels:
      app: nginx
  replicas: 20
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
      - name: nginx
        image: nginx:latest
        ports:
        - containerPort: 80

Perform this deployment via command:

kubectl apply -f nginx-deployment.yaml

Step 3: Check the deployed nginx pods and the IP address assigned to each pod

Perform a check of the pods via the command:

kubectl get pods -o wide

You can observe below, the nginx pods are assigned IPs 172.16.xx which satisfy the Cilium CIDR condition 172.16.0.0/16 that we specified above:

NAME                         READY   STATUS    RESTARTS   AGE   IP             NODE                                   NOMINATED NODE   READINESS GATES
nginx-app-7c79c4bf97-4lcbn   1/1     Running   0          83s   172.16.0.6     vks-cluster-02-nodegroup-7fb09-430aa   <none>           <none>
nginx-app-7c79c4bf97-669z9   1/1     Running   0          83s   172.16.1.115   vks-cluster-02-nodegroup-7fb09-3a594   <none>           <none>
nginx-app-7c79c4bf97-7hqp5   1/1     Running   0          83s   172.16.1.32    vks-cluster-02-nodegroup-7fb09-3a594   <none>           <none>
nginx-app-7c79c4bf97-8fjhm   1/1     Running   0          83s   172.16.2.51    vks-cluster-02-nodegroup-7fb09-3cb67   <none>           <none>
nginx-app-7c79c4bf97-8xmfm   1/1     Running   0          83s   172.16.0.100   vks-cluster-02-nodegroup-7fb09-430aa   <none>           <none>
nginx-app-7c79c4bf97-9b4px   1/1     Running   0          83s   172.16.2.19    vks-cluster-02-nodegroup-7fb09-3cb67   <none>           <none>
nginx-app-7c79c4bf97-b7vlg   1/1     Running   0          83s   172.16.1.128   vks-cluster-02-nodegroup-7fb09-3a594   <none>           <none>
nginx-app-7c79c4bf97-bc6r4   1/1     Running   0          83s   172.16.0.160   vks-cluster-02-nodegroup-7fb09-430aa   <none>           <none>
nginx-app-7c79c4bf97-flkz5   1/1     Running   0          83s   172.16.2.253   vks-cluster-02-nodegroup-7fb09-3cb67   <none>           <none>
nginx-app-7c79c4bf97-k55j6   1/1     Running   0          83s   172.16.2.76    vks-cluster-02-nodegroup-7fb09-3cb67   <none>           <none>
nginx-app-7c79c4bf97-l9p8p   1/1     Running   0          83s   172.16.2.187   vks-cluster-02-nodegroup-7fb09-3cb67   <none>           <none>
nginx-app-7c79c4bf97-llnfq   1/1     Running   0          83s   172.16.1.30    vks-cluster-02-nodegroup-7fb09-3a594   <none>           <none>
nginx-app-7c79c4bf97-mg9t8   1/1     Running   0          83s   172.16.0.221   vks-cluster-02-nodegroup-7fb09-430aa   <none>           <none>
nginx-app-7c79c4bf97-mlh7g   1/1     Running   0          83s   172.16.2.191   vks-cluster-02-nodegroup-7fb09-3cb67   <none>           <none>
nginx-app-7c79c4bf97-n946h   1/1     Running   0          83s   172.16.1.82    vks-cluster-02-nodegroup-7fb09-3a594   <none>           <none>
nginx-app-7c79c4bf97-p9k42   1/1     Running   0          83s   172.16.0.112   vks-cluster-02-nodegroup-7fb09-430aa   <none>           <none>
nginx-app-7c79c4bf97-sl4b8   1/1     Running   0          83s   172.16.1.22    vks-cluster-02-nodegroup-7fb09-3a594   <none>           <none>
nginx-app-7c79c4bf97-tdtjc   1/1     Running   0          83s   172.16.2.109   vks-cluster-02-nodegroup-7fb09-3cb67   <none>           <none>
nginx-app-7c79c4bf97-zwxps   1/1     Running   0          83s   172.16.2.209   vks-cluster-02-nodegroup-7fb09-3cb67   <none>           <none>
nginx-app-7c79c4bf97-zxx87   1/1     Running   0          83s   172.16.0.212   vks-cluster-02-nodegroup-7fb09-430aa   <none>           <none>

You can also perform a detailed description of each pod to check this pod information via the command:

kubectl describe pod nginx-app-7c79c4bf97-4lcbn
